Product Details:
|
| Applicable Industries: | Manufacturing Plant, Home Use, Retail, Printing Shops, Advertising Company | Showroom Location: | Viet Nam, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia |
|---|---|---|---|
| Condition: | New | Type: | Paper Cutting Machine |
| Computerized: | Yes | Voltage: | 380 V |
| Dimension(L*W*H): | 25000 X 3250 X 3000mm | Weight: | 25 Kg |
| Warranty: | 1 Year | Production Capacity: | 300 M/min |
| Key Selling Points: | Easy To Operate | Max. Workable Width: | 1000mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC | PLC Brand: | Schneider |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | LD 1050: | Exercise Book Making Machine |
| Output: | Exercise Book | Cutting Speed: | 45 Cycles |
| Keyword: | Exercise Book Production Line | Machine Type: | Automatic Grade |
| Raw Material: | Reel Paper Web Paper | Slitting Width: | 1050mm |
| Port: | Ningbo - China |

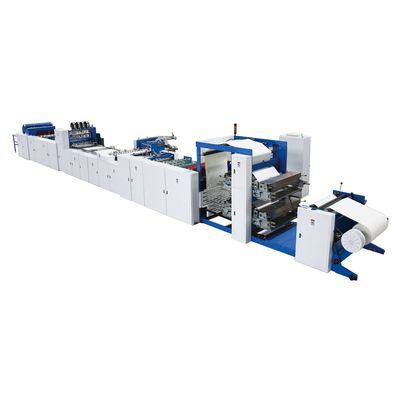

2023 New Fully Automatic Exercise Book Machine
Description :
This recently-developed machine by our company is of stable quality and high efficiency , which is applicable to the processing of comparatively-thicker thin notebook , thin notebook of two different inside sheets and thin notebooks of single-sided sheet with four colors. This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, Control interface touch screen operation and water ink flexo printing. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 12 processes from Dual reel paper unwinding , high speed flexographic printing 4/4, Cross cutting , Collecting counting, Auto feeder cover, Stitiching , folding , Back Pressing , Strip cross cutting, Trimming and slitting, Delivery counting the finished products of notebooks.
Product feature :
1) Fully automatic Exercise book high product
2) Double Feeders, Double paper unwind
3) Environmentally ink flexo graphic four colors printing
4) Speed adjustable, suitable for variable paper
5) Micro computer control and Electro-optical tracking
6) Control interface touch screen operation
7) The adoption Gas-liquid interaction, air moves the technique of paper, change paper fast and convenience, reduce the production time
8) Compactly structured to need a smaller area, easy to operate, lower manpower cost, high quality, competitive price, good after-sales service
Technical Parameters :
Product model LD-1050
Web width 580-1020mm
Max printing speed 350m/min
Repeat range printed 300-670mm
Cutting of length 300— 670mm
Counting collecting 5-50sheets
Max. reel paper diameter 1200mm
Sheet weight 45-120g
Notebook width 130-225mm
Cover weight 80-300g
Sheet weight 45-150g
Max. output frequency 45 times
Sheet stitching thickness 8mm
Total power 30KW
Overall dimensions (L x W x H ) 25000 x 3250 x 3000mm
Machine weight 25 T
